Drilling Machines

We can import/supply the following drilling machines.

1. Rock Drill

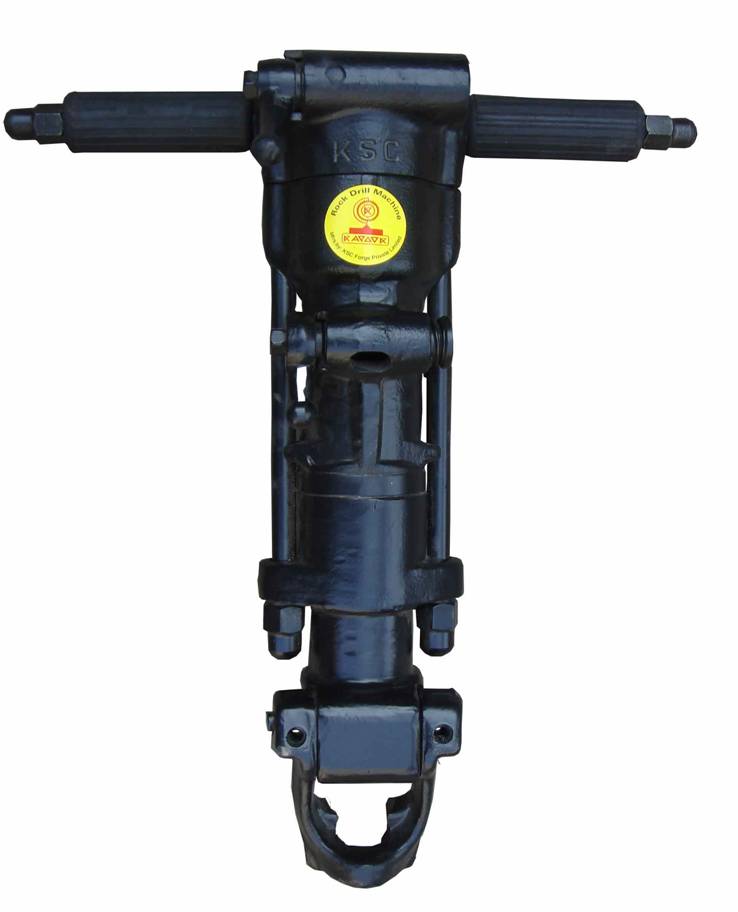

KSC SPEED 423 RH DRILL

This air flushed, medium heavy duty Rock Drill is used for a variety of surface drilling applications in quarries and construction sites. It is capable of drilling 27-40 mm diameter holes with H22 Integral/extension steels up to a depth of 6M. KSC SPEED 423 RH Drill is a powerful rock Drill with proven performance.

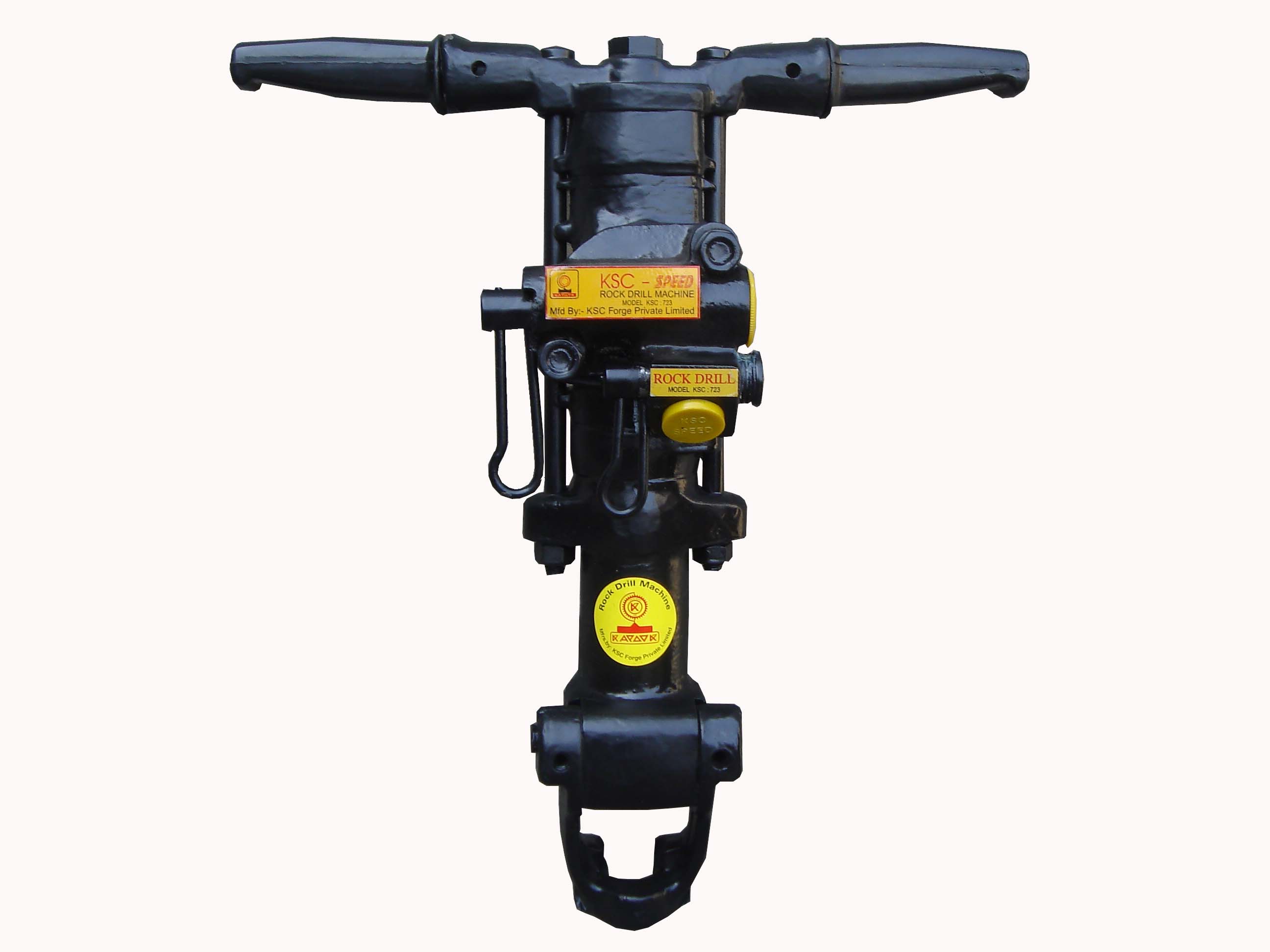

KSC SPEED 523 RH DRILL

The most reliable water flushed rock Drill used in underground mines and tunnels for horizontal or inclined drilling in conjunction with a Pusher Leg. It is capable of drilling 27-40 mm diameter holes with H22 Integral steels up to a dept of 6M. KSC SPEED 523 DRILL is one of the most reliable Rock Drill available for underground application.



Model	Weight	Air Requirement		Piston Diameter	Piston Stroke	Impact Rate	Drilling Rate*	Hose Connection
	(in Kg)	(at 6 Bar)	(87 PSI)	(in mm)	(in mm)	(Blows/	mm/Min	Air	Water
		m3/Min Cfm				Min)		(in mm)	(in mm)
KSC – 523	25.0	3.4	119	65	60	2000	425	19	–



2. Crawler Drill

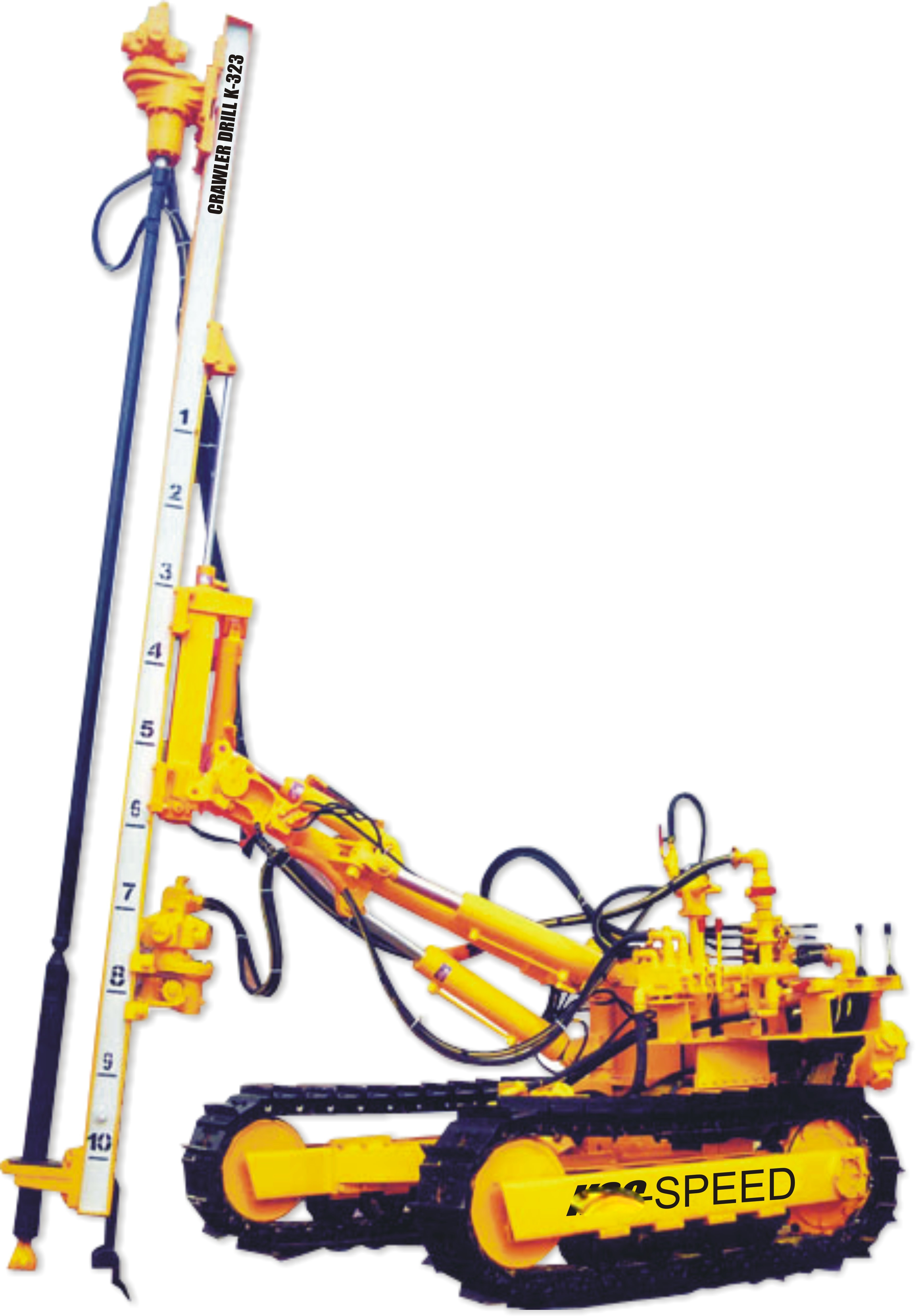

KSC SPEED AIR CRAWLER DRILL

KSC-Speed Air Crawler Drill Capable of Drilling 102 – 144mm (4-4½”) Dia Hole to a depth of 36.5 Mtr. used in open cast mines for drilling and blasting purposes.

KSC-Spped Air Crawler Drill is a self Propelled Crawler type drill, Designed for drillng holes in vertcal and horizontal planes.The Drill Guide, Boom, Controls are all Mounted on a heavy Duty Track Assembly

Control Panel:
Centralized Sensitve cotrols Pneumatic and hydraulic with auto feed arrangement is so arranged to ensure ease of operation which reduces operator fatigue

Track & Traction Drive:
Rugged Durable Overlapping steel track pads ar made to with stand punishment and keep right on going. Mechanical track oscillation are provided Allowing the track to flex up on either side providing positve ground contact while tramming over rough terrain.

Tramming Power is supplied by two powerful 9.0 H.p radial piston type air motor coupled toself braking spur worm combination reduction gearbox and chain drive on either side. This is enough to tram the K-323 with its compressor in tow right to the job site.

	Rugged Construction
	Heavier, Stronger Feed Chain
	Stable Drilling Capabilites
	Widest Choice of down hole drill or drifters
	Roation and winch / feed units Modified to provided additional power for faster Drilling and rapid with drwals, longer tool life etc. resulting in into better productivity.
	Centtralized Sensitive Controls with auto-feed arrangement ensure easy operation and reduction of operators fatigue
	Boom is provided with a heavy duty lift and swing cylinders to provide rigidity while Drilling
	Cast Steel Front Idle Roller
	Track tensioning arrangement
	Heavy duty radial piston type air propelling motors with self braking arrangement
	Mechanical track Oscillation
	Heavy-duty tow hitch



SPECIFICATIONS

Mode of Drilling: Down the Hole air Hammer Capacity 102 to 144mm dia Depth : 36.0 mtr

ROTATION UNIT 4 Cylinder – piston type air motor directly coupled to spur gear box B.H.P. at 1250 RMP and at 7 Kg.cm² 1:24.4 Gear Ratio 1:24.4 Rotation speed RPM 0-50 Max Torque 1125Nm(10,000 in lbs)

WINCH/FEED UNIT 4 Cylinder – piston type air motor directly coupled to spur Cum Drive gear box B.H.P. at 1250 RMP and at 7 Kg.cm² 4.0-4.5 Gear Ratio 1:29.7 Pull Down Force 0-2200 kgf Pull up Force 0-2200 kgf Max pull up Speed 0-15 m/min

AIR MOTOR FOR HYDRAULIC DRIVE 4 Cylinder – piston type air motor directly coupled to Hydraulic Pumps B.H.P. at 1250 RMP and at 7 Kg.cm² 4.0-4.5 Hydraulic Pump 7.6 liter/min, 2GPM Pressure 140 kg/cm2

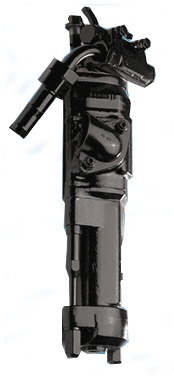

3. Drilling Drifter

“Speed 120F Drifter” is designed for both underground & surface drilling, having reversible rotation, system which can also be disengaged, leaving the impart mechanism in operation for releasing a jammed bit. Flushing can alternatively be done either with air or water the drifter is equipped with a sealed chuck for 1. 1/2″ to 2.2/4″ shank rods to suit difference application.

General Specifications
Piston Dia	4.23/32″
Piston Stroke	2.9/16″
Overall Length	30.3/4″
Weight	69 Kgs.
Storke Per Minute	1900 at 6 Kg Cm2
Rotation Speed	240 RPM at 6 Kg Cm2
Air Consumption	328 CFM at 6 Kg Cm2
Air Hose Connection	1.1/2″
Water Connection	3/4″
Air Rotation Reversal	3/8″
