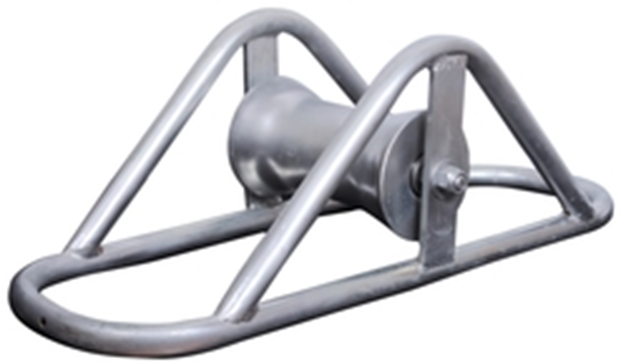

Compact / Straight Cable Roller
Our Cable Rollers are primarily used for the installation of armored cables. These straight-line rollers are useful due to its small height and width specially enclosed workspace.
The product is designed with Sealed bearings to stand the test of time, as well as providing smooth operation on a daily basis.
Light weight Roller:
Base Size: 320mm x 145mm
Weight: 2.75Kgs

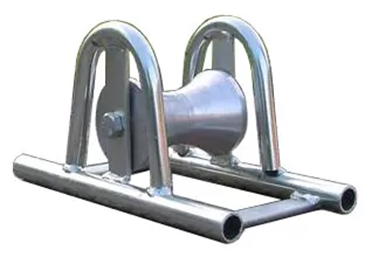

HSP125 Heavy Duty Cable Roller
All Zinc plated heavy duty assembly suitable for cables up to 125mm dia. Steel frame large waisted steel roller running on sealed ball bearings.
Technical Specification
Base Size: 350mm x 230mm
Weight: 4Kgs
Technical Specifications for heavy-duty roller:
• Heavy Duty Tubular Frame Straight Line Roller
• 76mm Diameter Roller
• Fitted with Sealed Bearing
• Bright Zinc Plated Finish
• 90mm diameter Cable Capacity
• Size 30cms Long x 21cms Wide x 26cms Hight
• Weight 5.5 Kg

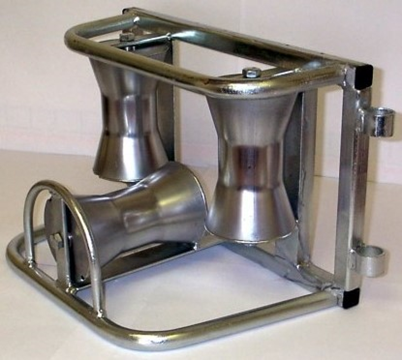

HD Galv Triple corner Cable Roller; Straight, Heavy-Duty
The Triple Corner Cable Roller is zinc plated for heavy duty cable pulling suitable for pulling heavy duty cables using two vertical and one horizontal steel roller – including LV-HV power cables. The assembly is of a robust construction for use in the most arduous conditions and can be linked together with stake pins provided to form a continuous corner roller system.
Features:
- All Powder Coating with Plastic-Coated Heavy-Duty assembly suitable for Cables up to 125 mm Diameter.
- Steel Frame Fitted Large Steel Roller Running on Sealed Ball Bearings.
- Base Size: 400 mm length x 340 mm width x 350mm height
- Roller Size: 115 mm Dia X 190 mm Length
- Both Ends of Rollers, fitted ZZ Bearings with Bearing Covers
Product Specifications:
All zinc plated finish and using two vertical and one horizontal steel rollers identical to HSP125 for taking the heaviest cables round difficult corners. The assembly is of a robust construction for use in the most arduous conditions and can be linked together with stake pins provided to form a continuous corner roller system.
Technical Specification
Height: 295mm Width: 290mm Length: 540mm
Weight: 12Kgs

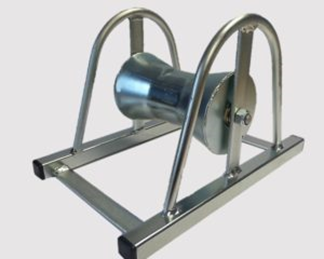

Long-Base Straight Cable Roller
All Zinc plated heavy duty assembly suitable for cables up to 125mm dia. Steel frame large waisted steel roller running on sealed ball bearings.
CABLE ROLLER STRAIGHT – LONG BASE
• Made of heavy-duty steel construction.
• Maintenance free, waterproofed, rubber sealed ball bearings.
• All tubes are continuous leaving no sharp edges.
• Cable Capacity 155mm dia.
• Carrying Load 300Kg.
• Straight line cable roller for use in most cable laying applications.
| Item Code | KAS 1107 | KAS 1108 | KAS 1110 | KAS 1111 |
| Roller 7″ | Roller 7″ | Roller 10″ | Roller 10″ | |
| Length: mm | 580 | 580 | 580 | 580 |
| Width: mm | 220 | 220 | 285 | 285 |
| Height: mm | 290 | 290 | 290 | 290 |
| Weight: Kg | 5.50 | 6 | 6 | 6.5 |
| Finish: | Electro Galvanized | Hot Dip Galvanized | Electro Galvanized | Hot Dip Galvanize |
V Type Cable Guide and Support Roller
V Type Lead in Cable Roller (Medium) – These cable rollers are well-constructed and perfect for outdoor use, meaning you can use them for basically any job or requirement. You can also use this cable roller as a replacement straight line cable roller or pipe roller.
The rollers are also easily replaceable as they are spring-loaded. These rollers also feature a zinc-plated finish, giving them a premium quality outer coating.
V Type Lead in Cable Roller (Medium) Specifications
- Heavy Steel Section Construction
- Can be used as an alternative for straight line or pipe rollers.
- 60mm diameter steel gravity rollers
- Zinc-plated finish
- Precision sealed roller bearings included.
- Spring-loaded shafts for easy replacement
- Dimensions: 100cm Length x 500mm Width x 500m High
- Weight: 16Kg
