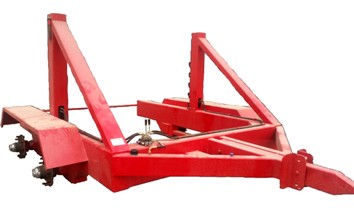

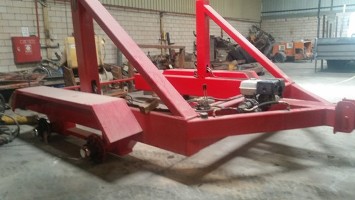

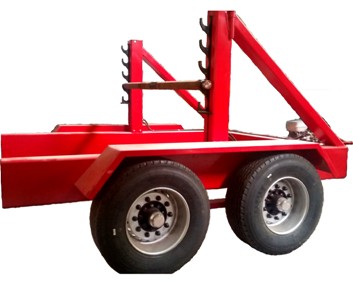

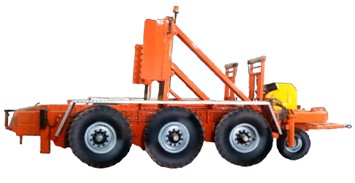

Cable drum trailers are used for drum transportation, hauling and unreeling of cable laying. It is a safe and easy method of cable spool handling. Prime features include:

  • Heavy duty suspension system
  • Diameter sizes from 1060 mm. to 5000 mm.

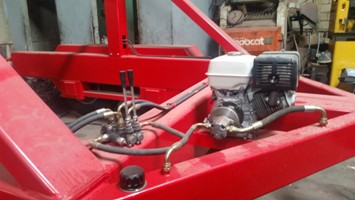

  • Hydraulic Hand Pump
  • Simple Operation and Maneuvering
  • Security Lock on Drum
  • Safety Brakes
  • Easy Maintenance
WordPress Tables



S.No. Description Unit KAS-1003 KSA-1006 KSA-1010 KAS-1015 KAS-1020 KAS-1025 KAS-1030
1 Payload: MT. 3 6 10 15 20 25 30
2 Net Weight: MT. 0.75 1.3 1.4 2.4 3.5 4.2 4.2
3 Gross Weight: MT. 3.75 7.3 11.4 17.4 23.5 29.2 34.2
4 Max. Speed: Km/hour 40 24 24 40 24 16 16
5 Coupling Height: mm 610 820 820 820 820 610 610
6 Towing Eye: mm 30 42 54 64 64 80 80
7 Drum Diameter:
7.1 Minimum: mm 1060 2000 2300 1700 2400 2500 2500
7.2 Maximum: mm 2500 3200 3500 3500 4800 4800 5000
8 Drum Width: Max. mm 1300 1700 2000 2150 2500 2600 2800
9 Spindle Dia: Solid: mm 60 70 90 100 115 150 180
10 Clear Width: mm 1580 2000 2300 2450 3050 3050 3050
11 Overall Length: mm 3100 4000 4150 4200 5900 5900 5900
12 Overall Width: mm 2300 2900 3370 3470 4500 4600 4840
13 Overall Heigth (Unloaded): mm 1800 2200 2200 2200 3050 3050 3050
14 Tyres: 8.5R 17.5 PR 12R 20 18PR 14R 20 20PR 12R 20PR 18x2 14R 20PR 10x4 14R 20PR 10x4 14R 20PR 10x4
